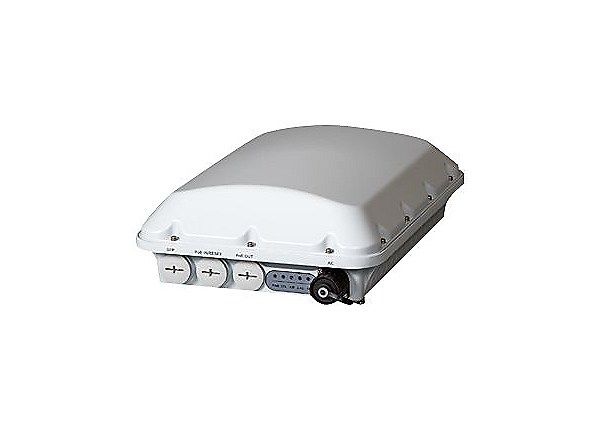

Ruckus ZoneFlex T710 – wireless access point

(901-T710-US01)

Categories: Networking, Ruckus, ZoneFlex T710 Unleashed, Wireless Access Points, T Series

The ZoneFlex T710 is a dual-band 802.11ac outdoor (IP 67 rated) access point (AP) designed explicitly for high density public venues such as airports, conventions centers, plazas & malls, and other dense urban environments.

Offered with internal omni directional antennas, the T710 is designed for easy installation within an ultra-lightweight and low profile enclosure. The T710 is ideal for venue owners and enterprises looking to deploy Wi-Fi in high-capacity environments.

Main Features

Wireless access point
Wi-Fi
Dual Band

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus

ModelT710

Country KitsUnited States

Packaged Quantity1

Antenna

Antenna Form FactorInternal

DirectivityDirectional

Antenna Qty2

Chassis

Ruggedized DesignOutdoor

Capacity

CapacityConcurrent stations: 512, Simultaneous VoIP clients: 30

Networking

TypeWireless access point

Form FactorExternal

Connectivity TechnologyWireless

Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wireless Protocol802.11a/b/g/n/ac

Data Transfer Rate1.733 GBps

Wi-Fi Bands2.4 GHz, 5 GHz

Power Over Ethernet (PoE)PoE

Status IndicatorsPower, Status

FeaturesBeamFlex+ Smart Antenna Technology, Captive Portal, Dual-stream (2×2), Jumbo Frames support, Load balancing, Network Admissions Control (NAC), Pole mountable, Quality of Service (QoS), Wall mountable, Wi-Fi Multimedia (WMM) support

Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Wi-Fi CERTIFIED

Interface Provided

Interfaces2 x 1000Base-T (PoE) – RJ-45

Power Device

Power Consumption Operational10.4 watt

Miscellaneous

Color CategoryWhite

Included AccessoriesMounting brackets

Encryption AlgorithmAES, WPA, WPA2, WPA2-Enterprise, WPA-Enterprise, WPA-PSK

Authentication MethodActive Directory, Basic Service Set Identifier (BSSID), RADIUS

Compliant StandardsCAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CB, CISPR 22, CISPR 24, EN 50121-1, EN 50121-4, EN 50385, EN 60950-22, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, EN50155, EN60950-1:2006 + A12:2011, ETSI 300 019, FCC, GR-1089-CORE, ICNIRP, IEC 60529 IP67, IEC 60950-1:2005 Second Edition, IEC 609

Dimensions & Weight

Width9.5 inch

Depth12.5 inch

Height3.7 inch

Weight6.5 lbs
