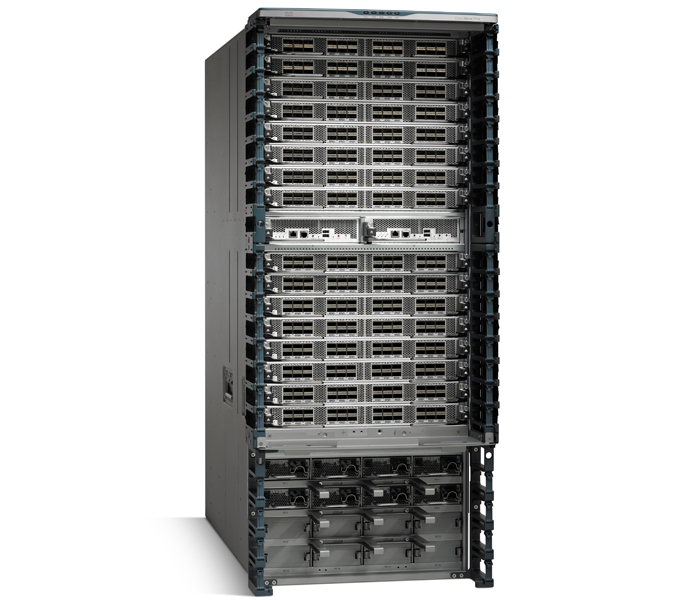

Cisco Nexus 7700 18-Slot Campus LAN Switches

Port count
768 x 10 Gbps, 384 x 40 Gbps, and 192 x 100 Gbps

Product compatibility
Supports all Cisco Nexus 7700 switch modules
Supports Cisco Nexus 7700 Fabric-2 modules

Software compatibility
Cisco NX-OS Software Release 6.2.2 or later

Options
Door air filter
Lockable front module doors
Power supply center cable management

System forwarding capacity
83 Tbps

Reliability and availability
OIR of all redundant components: supervisor and fabric modules, power supplies, and fan trays

MIBs
Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)

Network management
Cisco Data Center Network Manager (DCNM) 6.2.2 or later

Programming interfaces
XML
Scriptable CLI
Cisco DCNM web services
Python
TCL
Cisco IOS EEM
Cisco OnePK
OpenFlow

Physical specifications
Required rack space: 26RU
18-slot switch: 2 dedicated supervisor modules and 16 I/O modules
6 fabric module slots
16 power supply slots
Dimensions (H x W x D): 45.25 x 17.3 x 35 in. (114.9 x 43.9 x 88.9 cm)
Chassis depth, including cable management and chassis doors, is 41 in. (104.1 cm)
Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack
Weight
Chassis only: 300 lb
Fully configured: 900 lb
Power requirements: 110 to 240 VAC
Supports 3-kW AC and DC power supplies

Environmental specifications
Airflow direction: Front to back
Operating temperature: 32 to 104°F (0 to 40°C)
Operational relative humidity: 5 to 90%, noncondensing
Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
Seismic: Zone 4 per GR63
Floor loading: 230 lbs per sq. ft.
Operational vibration
GR63, Section 5.4.2
ETS 300 019-1-3, Class 3.1, Section 5.5
Storage altitude: -1000 to 30,000 ft.
Storage temperature: -40 to 158°F (-40 to 70°C)
Storage relative humidity: 5 to 95%, noncondensing
Heat dissipation: Maximum 96,160 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)

Regulatory compliance
EMC compliance
FCC Part 15 (CFR 47) (USA) Class A
ICES-003 (Canada) Class A
EN55022 (Europe) Class A
CISPR22 (International) Class A
AS/NZS CISPR22 (Australia and New Zealand) Class A
VCCI (Japan) Class A
KN22 (Korea) Class A
CNS13438 (Taiwan) Class A
CISPR24
EN55024
EN50082-1
EN61000-3-2
EN61000-3-3
EN61000-6-1
EN300 386

Environmental standards
NEBS criteria levels *
SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
Verizon NEBS compliance *
Telecommunications Carrier Group (TCG) checklist
Century Link NEBS requirements *
Telecommunications Carrier Group (TCG) checklist
ATT NEBS requirements *
ATT TP76200 level 3
ETSI *
ETSI 300 019-2-1, Class 1.2 storage
ETSI 300 019-2-2, Class 2.3 transportation
ETSI 300 019-2-3, Class 3.2 stationary use
* Validation in progress

Safety
UL/CSA/IEC/EN 60950-1
AS/NZS 60950

Warranty
Cisco Nexus 7700 Switches come with the standard Cisco 1-year limited hardware warranty
