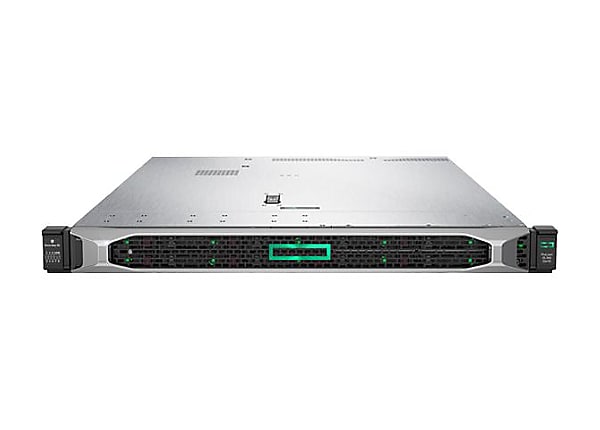

HPE ProLiant DL360 Gen10 Network Choice – rack-mountable – Xeon Gold 6248R

(6356121)

Categories: , , ,

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores, along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 82%. With the added performance that HPE Persistent Memory, HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.

Product Specifications

Chassis
Form Factor :Rack-mountable
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Hot-Swap Bays Qty :8

Processor
Type :Xeon Gold
Number of Cores :24-core
Processor Number :6248R
Installed Qty :1
Max Supported Qty :2
Server Scalability :2-way
Upgradability :Upgradable
Manufacturer :Intel
Clock Speed :3 GHZ
Max Turbo Speed :4 GHZ
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory
Type :L3 cache
Installed Size :35.75 megabyte

RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :32 GB
Max Supported Size :1.5 TB
Configuration Features :1 x 32 GB
Data Integrity Check :Advanced ECC
Slots Qty :24
Empty Slots :23
Memory Speed :2933 megahertz
Rated Memory Speed :2933 megahertz
Features :HPE SmartMemory, Registered, Slots 13 – 24 are available in two-processor configuration only

Type :Serial ATA
Interface Type :Serial ATA-600
Channel Qty :14
Installed Qty :1

Networking
Remote Management Controller :Integrated Lights-Out 5
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol :IPMI 2.0, SMASH CLP, SNMP 3
Features :PXE support, Wake on LAN (WoL)

Expansion Bays
Bays :1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Expansion Slots
Slots :1 (total) / 1 (free) x FlexibleLOM – three-quarter-length, full-height (low-profile), 1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – three-quarter-length, full-height, 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile, 1 (total) / 1 (free) x PCIe x16 – full-height

Interface Provided
Interfaces :1 x HPE iLO – RJ-45, 1 x HPE iLO – Type A (1 in front), 1 x VGA, 5 x USB 3.0 (1 front, 2 rear, 2 internal), LAN (Gigabit Ethernet) – RJ-45

Power Device
Type :Power supply – hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :0
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz

Service & Support Details
Service & Support :Limited warranty – parts and labor – 3 years – on-site
