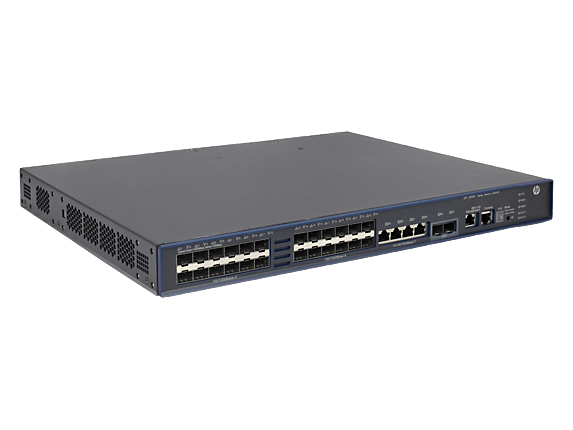

HP 5500-24G-SFP HI Switch

(JG543A)

Categories: , , ,

The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support at the edge layer of large campus and branch networks. The HP 5500 HI has a robust feature set supporting 1440W PoE+, fixed and modular 10GbE, 9 chassis IRF stacking, Static & RIP Routing, OSPF, MPLS, ACLs, IPv6 and Energy Efficient Ethernet.

The HP 5500 HI Switch Series offers advanced technologies including OAM, CFD, Multi-level QoS, MPLS, and VPLS, and can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Product Specifications

Differentiator
Layer 3 switch with 24 GbE SFP slots
4 10/100/1000 ports and 2 10GbE SFP+ slots
2 expansion module slots
supports Intelligent Resilient Framework (IRF) virtual fabric and dual power supplies

Ports
24 fixed Gigabit Ethernet SFP ports
4 RJ-45 autosensing 10/100/1000 ports
2 SFP+ 10GbE ports
2 port expansion module slots
Supports a maximum of 12 autosensing 10/100/1000 ports, with optional module
Included

Memory and processor
1 GB SDRAM
packet buffer size: 3 MB
512 MB flash

Latency
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs

Throughput
up to 130.9 Mpps

Routing/switching capacity
176 Gbps

Stacking capabilities
IRF
9 switches

Dimensions (W x D x H)
17.32 x 14.17 x 1.72 in (43.99 x 35.99 x 4.37 cm)
Weight
16.53 lb (7.5 kg)

What's in the box
(1) HP 5500-24G-SFP HI Switch with 2 Interface Slots
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
