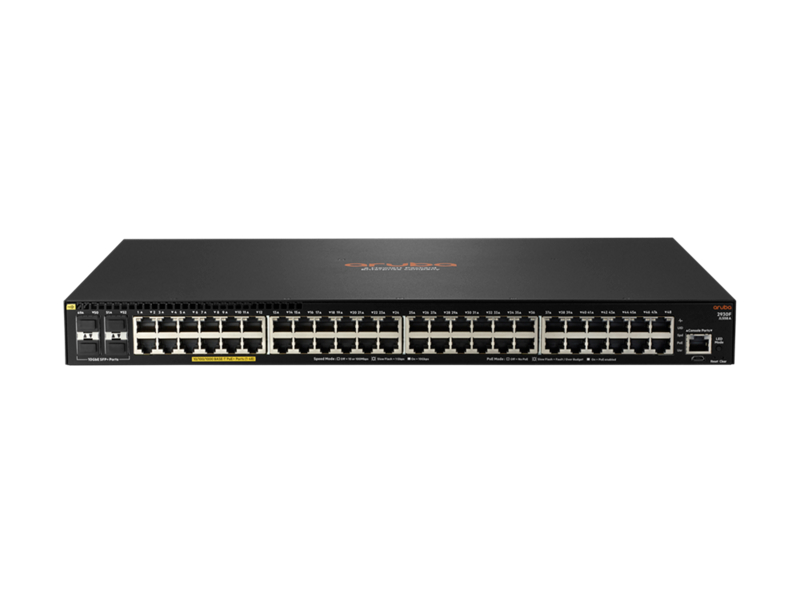

Aruba 2930F 48G PoE+ 4SFP+ 740W Switch

(JL558A)

Categories: Networking, HP Switches, Aruba, Aruba 2930F Switch Series

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

What’s New

Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
Scale with 8 chassis VSF stacking.
Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.

Call for Pricing

Product Specifications

Product Information

Product Differentiator (long)
Popular Aruba 52-port Gig + 10G access switch with high-power 740 Watts PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.

Power Consumption Description
980 W (maximum)

Heat Dissipation
420.9 BTU/hr (444.1 kJ/hr)

Input Voltage
100-127 / 200-240 VAC, rated

External I/O Ports
(48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less

Latency
1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs

Switching Capacity
176 Gbps

Throughputup
to 112 Mpps

Memory and Processor
Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC

PoE Capability
740 W PoE+

Management Features
Aruba AirWave Central Network Management IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Warranty Standard Statement
Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Weight (imperial)
10.56 lb

Weight (metric)
4.79 kg

Product Dimensions (imperial)
1.73 x 17.42 x 12.77 in

Product Dimensions (metric)
4.39 x 44.25 x 32.42 cm
