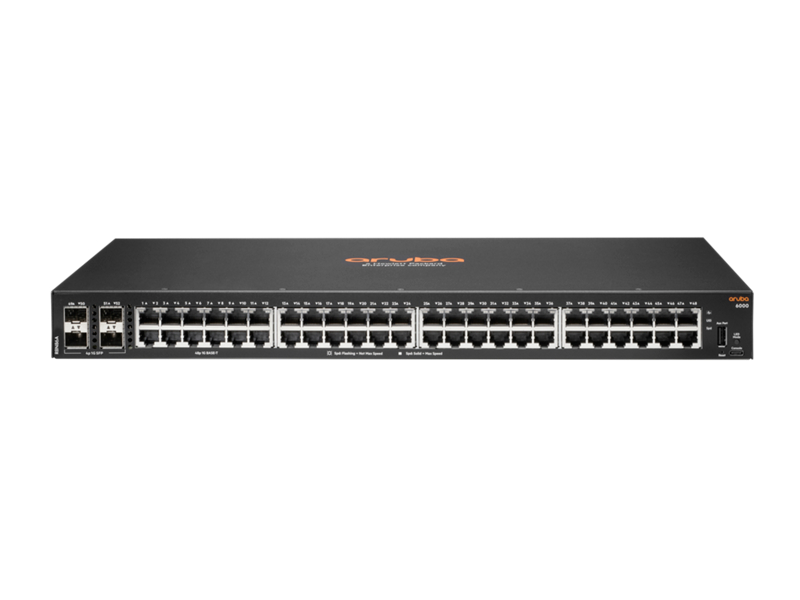

Aruba 6000 48G Class4 PoE 4SFP 370W Switch

(R8N85A)

Categories: , , ,

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The Aruba CX 6000 series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.

What’s New

  • Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that provides entry level, reliable, and convenient wired access connectivity.
  • Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of access points, client, and IoT devices.
  • Compact and fanless 12 port PoE model for space-constrained deployments.
  • Flexibility to manage with Aruba Central1, easy to use Web GUI, CLI, or Aruba NetEdit.
  • Software defined ready with REST APIs.
  • HPE Limited Lifetime Warranty with no switch software licensing required.

Product Specifications

Power Consumption Description
Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W

Input Voltage
100-127 VAC / 200-240 VAC

External I/O Ports
48x ports 10/100/1000BASE-T ports 4x 1G SFP ports

Latency
1 Gbps: 1.9 μSec

Routing Capabilities
Static

Switching Capacity
104 Gbps

Throughput
77.3 Mpps

Memory and Processor
Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC

PoE Capability
370W Class 4 PoE/PoE+

Warranty Standard Statement
Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase

Weight (imperial)
11.07 lbs

Weight (metric)
5.0 kg

Product Dimensions (imperial)
1.73 x 17.4 x 12.0 in

Product Dimensions (metric)
4.4 x 44.2 x 30.5 cm

Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
