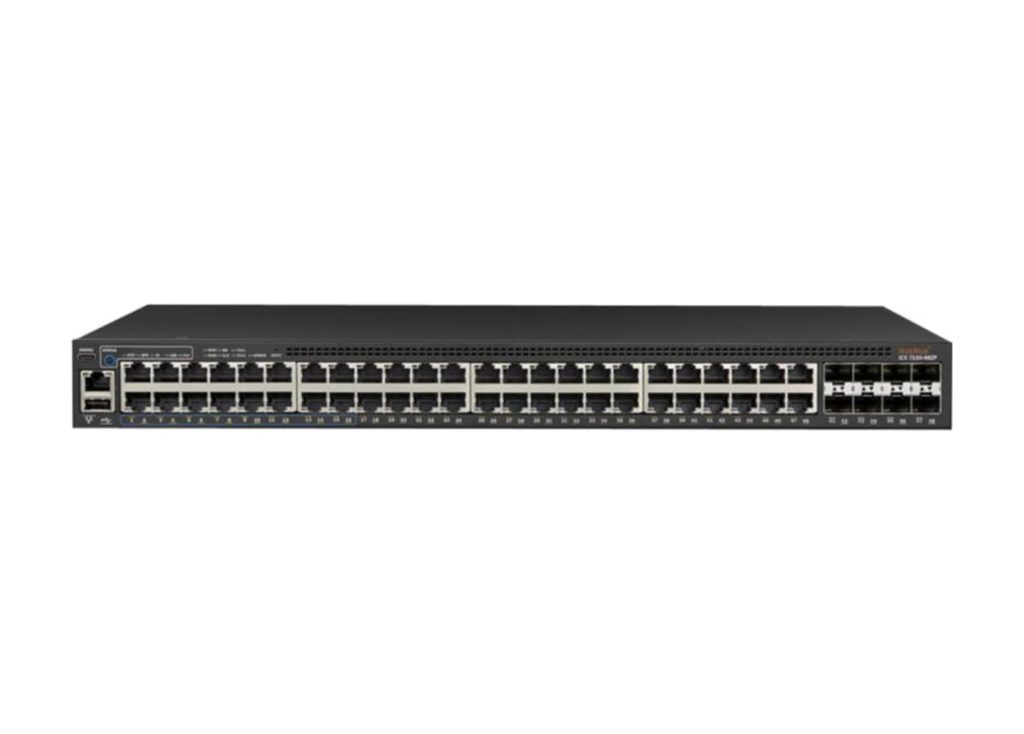

Ruckus ICX7150-48ZP switch, 48 ports, managed, rack-mountable

Ruckus ICX7150-48ZP – switch – 48 ports – managed – rack-mountable

(ICX7150-48ZP-E8X10GR2-A)

Ruckus ICX7150-48ZP Z-Series switch, 16×100/1000 Mbps/2.5 Gbps PoH ports, 32×10/100/1000 PoE+ ports, 8×10 GbE SFP+ stacking/uplink-ports (max 4 stacking), 2×920 W AC power supply, 2 fans, 1480 W PoE budget, L3 features (OSPF, VRRP, PIM, PBR) TAA compliant.

Main Features

48ZP
Switch
L3
managed
16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
rack-mountable
PoE+ (1480 W)
TAA Compliant

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ICX

Model7150-48ZP

Packaged Quantity1

RAM

Installed Size1 GB

Flash Memory

Installed Size2 GB

Performance

PerformanceForwarding performance: 226 Mbps, Stacking bandwidth: 480 Gbps, Switching capacity: 304 Gbps

Capacity

CapacityARP entries: 4094, PVLANs supported: 32, QoS hardware queues per port: 8, Spanning Tree Protocol instances: 254, Virtual interfaces (VLANs): 4095

Networking

TypeSwitch

SubcategoryNetwork hubs and switches

SubtypeGigabit Ethernet

Form FactorRack-mountable

StackableStackable

Max Units In A Stack12

Ports Qty48

Advanced SwitchingLayer 3

Routing ProtocolECMP, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing, VRRP, VRRPE, VRRPv3

MAC Address Table Size16384 entries

Jumbo Frame Support9216 bytes

ManageableYes

Remote Management ProtocolCLI, HTTP, HTTPS, NTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP

Power Over Ethernet (PoE)PoE+

PoE Budget1480 watt

FeaturesAccess Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Denial of Service (DoS) protection, DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, DiffServ support, Digital Optical Monitoring (DOM) support, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), IGMP proxy, IGMP snooping, In-Service Software Upgrade (ISSU), LACP support, MAC address authentication, MAC address filtering, MAC address mapping, Metro Ring Protocol (MRP) support, MLD snooping, Neighbor Discovery Protocol (NDP), PIM-SM snooping, Port mirroring, Private VLAN, Quality of Service (QoS), Remote Fault Notification (RFN), Secure Copy (SCP), Strict Priority (SP), Syslog support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Switch Redundancy Protocol (VSRP) support, VLAN Double Tagging (Q-in-Q), VLAN mirroring, VLAN support, Voice VLAN, Weighted Round Robin (WRR)

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Ports

Qty16

Ports (2nd)

Qty32

Type10/100/1000 (PoE+)

Ports (3rd)

Qty8

Type1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)

Interface Provided

Interfaces1 x console (USB) Type C, 1 x management RJ-45, 1 x serial (console) RJ-45, 1 x USB, 16 x 100/1000/2.5G RJ-45 PoH – 30 W, 32 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W, 8 x 1/10Gbit LAN SFP+ uplink/stacking

Power Device

TypeInternal power supply

Hot-PlugHot-plug

Installed Qty1

Max Supported Qty1

Power Provided920 watt

Nominal VoltageAC 120/230 V

Frequency Required50 – 60 hertz

Miscellaneous

Color CategoryBlack

TAA CompliantYes

Height (Rack Units)1

Encryption AlgorithmAES

Authentication MethodRADIUS, RADSEC, Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF104,626 Hours

Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60825-2, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN 61000-6-3, EN50081-1, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE

Dimensions & Weight

Width17.3 inch

Depth13.1 inch

Height1.7 inch

Weight14.57 lbs

Service & Support

TypeLimited lifetime warranty

Environmental Parameters

Min Operating Temperature23 degree Fahrenheit

Max Operating Temperature113 degree Fahrenheit

Min Storage Temperature-13 degree Fahrenheit

Max Storage Temperature158 degree Fahrenheit

Humidity Range Operating5 – 95% (non-condensing)

Humidity Range Storage0 – 95% (non-condensing)
