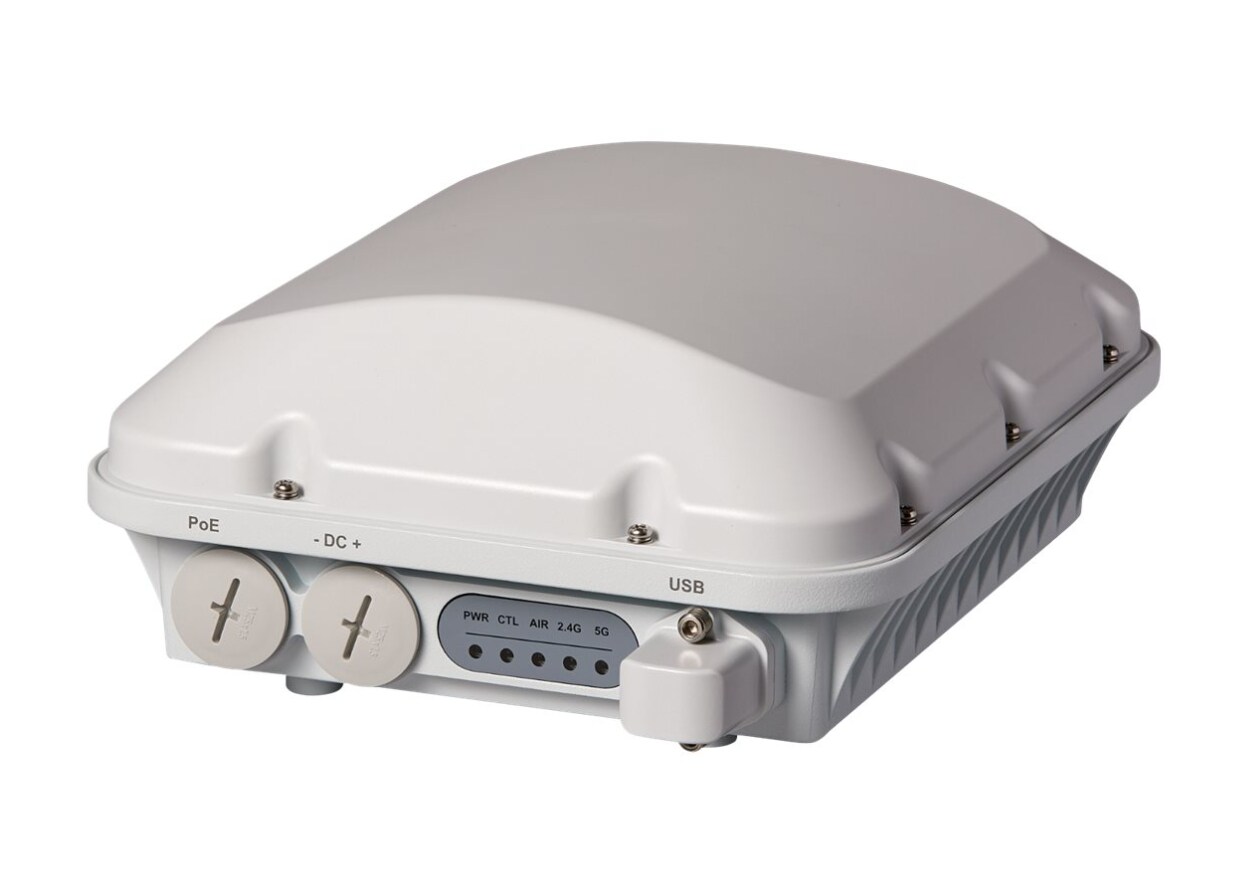

Ruckus ZoneFlex T310n – Unleashed – wireless access point

(9U1-T310-US61)

Categories: , , , ,

Ruckus Unleashed access points are designed for organizations and venues that need rock-solid Wi-Fi performance that is easy to deploy without wireless controllers.

The Ruckus Unleashed T310n outdoor AP is designed for high-density venues that need affordable, rock-solid Wi-Fi performance.

Venues without a dedicated IT staff need Wi-Fi coverage that serves customers, keeps employees productive, and supports backend business functions. This means Wi-Fi must be easy to deploy, fast, and highly reliable.

The T310n does not compromise on performance. This 802.11ac Wave 2 AP incorporates the same patented adaptive antenna technology, BeamFlex+, found throughout the Ruckus Wi-Fi portfolio, that extends coverage using fewer APs and improves wireless download speeds. BeamFlex directs each data packet over the best performing signal path, mitigating interference automatically.

The T310n also incorporates ChannelFly which provides significant capacity improvements in congested environments – delivering up to 50 percent capacity gains over competitive dynamic channel selection approaches. The T310n: Installs easily even without an IT staff; Supports harsh outdoor environments; Supports high-density locations with a minimal footprint; Supports up to 512 clients on a single AP; Supports more services – including streaming media, web browsing, and email; Easily handles the transmission of challenging content – including jitter and latency sensitive streaming media; Uses fewer APs to cover more area with extended range capabilities; Improves throughput automatically delivering up to 50 percent capacity gains; Reduces costs with support for both standard PoE and PoE+.

Main Features

  • Unleashed
  • wireless access point
  • 802.11ac Wave 2
  • Wi-Fi
  • Dual Band

Product Specifications

ManufacturerRuckus Wireless
BrandRuckus
Product LineRuckus ZoneFlex
ModelT310n
EditionUnleashed
Country KitsUnited States
Packaged Quantity1
Antenna Form FactorInternal
DirectivityOmni-directional

Ruggedized DesignOutdoor

TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol802.11a/b/g/n/ac Wave 2
Data Transfer Rate1.167 GBps
Wi-Fi Bands2.4 GHz, 5 GHz
Power Over Ethernet (PoE)PoE
FeaturesAccess Control List (ACL) support, BeamFlex+ Smart Antenna Technology, Captive Portal, ChannelFly, DHCP support, Load balancing, MU-MIMO technology, NAT support, Quality of Service (QoS), Spectrum analyzer, SU-MIMO technology
Compliant StandardsIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, Wi-Fi CERTIFIED

Interfaces1 x 1000Base-T – RJ-45, USB

Power Consumption Operational7.92 watt

Color CategoryWhite
Encryption AlgorithmAES, WPA-PSK
Authentication MethodActive Directory, RADIUS
Compliant StandardsEN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, IEC 61373, IEC 62311, IP67, ISTA 2A, RoHS, UL 2043, WEEE
Width5.9 inch
Depth7.1 inch
Height3.1 inch
Weight2.2 lbs

Service & SupportLimited warranty – 1 year

Min Operating Temperature-40 degree Fahrenheit
Max Operating Temperature149 degree Fahrenheit
Humidity Range Operating0 – 95% (non-condensing)
