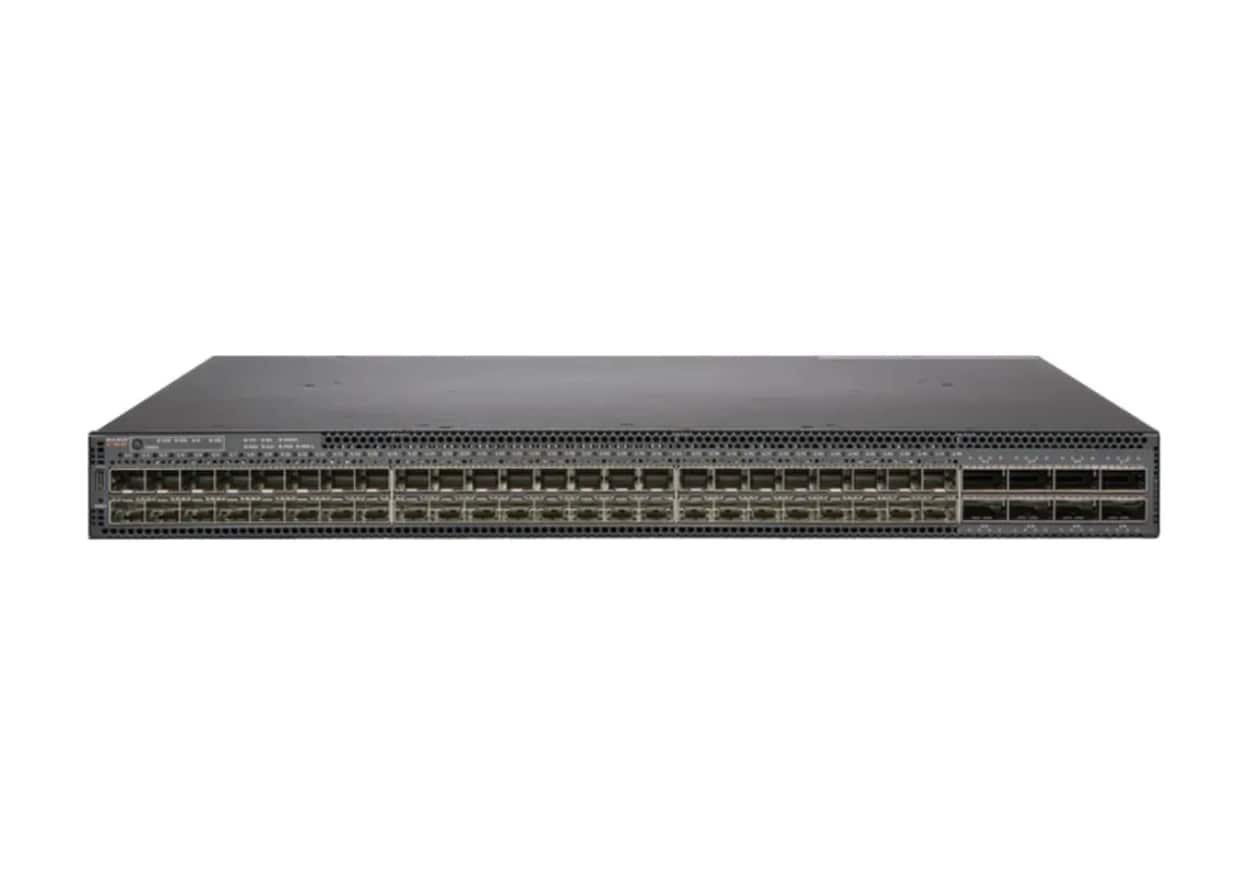

Ruckus ICX 7850 1/10GbE 48 Port SFP+ Ethernet Switch

(ICX7850-48FS)

Categories: Networking, Ruckus, ICX7850, ICX Switches

The Ruckus ICX 7850 Switch is designed to meet these new challenges. It delivers nonblocking line-rate performance on all ports concurrently, with a switching capacity up to 6.4 Tbps. It supports the next generation Ethernet speeds with 10/25 Gigabit Ethernet at the aggregation and 40/100 Gigabit Ethernet at the core to meet high volume of traffic driving from the edge into the core. It also supports a rich array of routing protocols and delivers a range of high-availability hardware and software features.

Main Features

Number of Port: 48
Interface: SFP+

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ICX

Model7850-48FS

Packaged Quantity1

RAM

Installed Size4 GB

Flash Memory

Installed Size32 GB

Performance

PerformanceAggregate stacking bandwidth: 9.6 Tbps, Forwarding capacity: 1.9 Bpps, Switching capacity: 2.56 Tbps

Capacity

CapacityLatency: 0.8 µs, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Maximum ports per trunk: 16, Priority QoS queues: 10, PVLANs supported: 256, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 64

Networking

TypeSwitch

SubcategoryNetwork hubs and switches

Subtype10 Gigabit Ethernet

Form FactorRack-mountable

StackableStackable

Ports Qty48

Advanced SwitchingLayer 3

Routing ProtocolECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng, Static IP routing, VRRP

MAC Address Table Size32K entries

Jumbo Frame Support9216 bytes

ManageableYes

Remote Management ProtocolCLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP

Features802.1x authentication, Access Control List (ACL) support, BOOTP support, DHCP server, DHCP snooping, DHCP support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Flow control, Full duplex capability, IGMP proxy, In-Service Software Upgrade (ISSU), IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation, Link Aggregation Control Protocol (LACP), LLDP support, MAC address authentication, MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MRP-II support, Multi-Chassis Trunking (MCT), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port mirroring, Protected ports, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Secure Copy (SCP), sFlow, SmartZone, SNMP support, Strict Priority (SP), Syslog support, Tagged VLAN, Telnet client, Telnet server, Trivial File Transfer Protocol (TFTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, VLAN Tagging, Weighted Round Robin (WRR) queuing

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z

Ports

Qty48

Ports (2nd)

Qty8

Type40 Gigabit / 100 Gigabit QSFP28

Interface Provided

Interfaces1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45 management, 48 x 1/10Gbit LAN SFP+, 8 x 100Gbit/40Gbit LAN QSFP28Interfaces1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45 management, 48 x 1/10Gbit LAN SFP+, 8 x 100Gbit/40Gbit LAN QSFP28

Power Device

TypeInternal power supply

Hot-PlugHot-plug

Power RedundancyYes

Power Redundancy Scheme1+1 (with optional power supply)

Max Supported Qty2

Miscellaneous

Color CategoryBlack

Height (Rack Units)1

Encryption AlgorithmAES

Authentication MethodRADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF298,215 Hours

Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55022, EN55024, FCC Part 15 A, ICES-003, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, IEC60950-1, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE

Dimensions & Weight

Width17.3 inch

Depth17.5 inch

Height1.7 inch

Weight20.06 lbs

Service & Support

TypeLimited lifetime warranty

Environmental Parameters

Min Operating Temperature32 degree Fahrenheit

Max Operating Temperature113 degree Fahrenheit

Min Storage Temperature-40 degree Fahrenheit

Max Storage Temperature104 degree Fahrenheit

Humidity Range Operating10 – 90% (non-condensing)

Humidity Range Storage10 – 90% (non-condensing)
