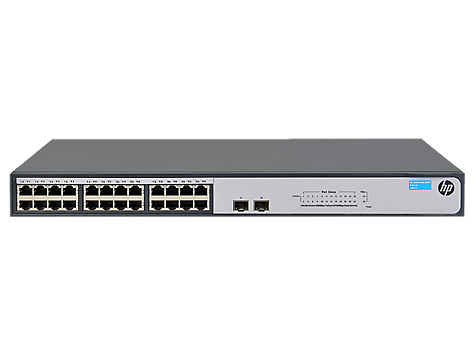

HP 1420-24G-2SFP Switch

(JH017A)

Categories: Networking, HP Switches, HP Small Business, HP 1420

The HP 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models. The HP 1420 Switch Series has four models: 16-port 10/100/1000; 24-port 10/100/1000 with two SFP Gigabit ports; 24-port 10/100/1000 ports of which 12 are PoE+ enabled (124W PoE budget); and 24-port 10/100/1000 with two SFP+ 10-Gigabit ports.

Details Specification

Product Specifications

Differentiator
Unmanaged Gigabit switch with 24 10/100/1000 ports and two SFP fixed 100/1000 Mbps ports. Flexibility for longer distances with Fiber connectivity using optional SFP transceivers. Fanless. Internal power supply.

Ports
(24) RJ-45 autosensing 10/100/1000 ports
(2) SFP 100/1000 Mbps ports
Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP ports

Memory and processor
1 MB flash
Packet buffer size: 512 KB

Latency
100 Mb Latency: < 8 µs
1000 Mb Latency: < 16 µs

Throughput
up to 38.7 Mpps

Switching capacity
52 Gbps

Dimensions (W x D x H)
17.32 x 6.81 x 1.73 in (44 x 17.3 x 4.4 cm)
Weight
4.85 lb (2.2 kg)

What’s in the box
(1) HP 1420-24G-2SFP Switch (JH017A), (1) localized country power cord, (1) rack-mounting kit, (4) rubber feet, (1) documentation package (Quick Setup Guide, warranty information, and etc.)
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
