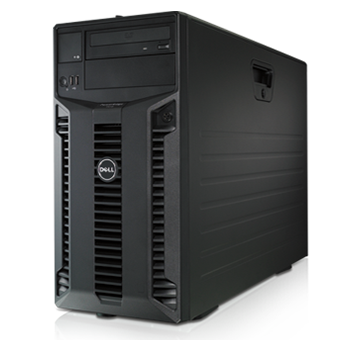

Dell PowerEdge T410

(dc5f18833117)

Categories: , , ,

Compact, flexible, quiet and easy to use, the Dell PowerEdge™ T410 uses Dell next-generation technologies for reliable performance. The advanced performance of Intel® Xeon® processor 5500 series and Intel® Xeon® processor 5600 series, DDR3 memory and up to six 3.5-inch hard drives (or optional 2.5-inch) meet the multi-application needs of growing businesses. The Dell PowerEdge T410 features quiet acoustics, available redundant power supplies and excellent diagnostics with an available interactive LCD.

Product Specifications

Processor
Intel® Xeon® processor 5500 and 5600 series
Six-core Intel® Xeon®
Quad-core Intel® Xeon®

Chipset
Intel® 5500 chipset

Power
Non-Redundant, 525W (80+)
Optional Redundant, 580W (80+ GOLD)
Auto Ranging (100V~240V)

Memory

Up to 128GBs (8 DIMM slots)1GB/2GBs/4GBs/8GBs/16GBs DDR3 800MHz, 1066MHz or 1333MHz
Unbuffered w/ECC or Registered w/ECC at 1333/1066/800MHz

Options:
1GB UDIMM/RDIMM
2GBs UDIMM/RDIMM
4GBs RDIMM
8GBs RDIMM

Storage

Hard Drive Options:
3.5″ SATA (7.2K RPM): 160GBs, 250GBs, 500GBs, 750GBs, 1TB
3.5″ Near Line SAS (7.2K RPM) 500GBs, 750GBs, 1TB
3.5″ 6Gps SAS (7.2K): 2TBs
3.5″ SAS (15K RPM): 146GBs, 300GBs, 450GBs
3.5″ SAS (10K RPM): 600GBs
2.5″ SAS (10K RPM): 73GBs, 146GBs, 300GBs
2.5″ SATA SSD 25GBs, 50GBs, 100GBs

Maximum Internal Storage:
12TBs (6x 2TB SATA)
12TBs (6x 2TB NL-SAS)

Backup Devices
RD1000 (Internal and External)
DATA72 (Internal and External)
LTO2-L (Internal and External)
LTO3-060 (Internal and External)
LTO3FH (External)
LTO4-120 HH (Internal and External)
LTO4-120 FH (External)
PV114T (External, 2U)

Tape Automation
TL2000/TL4000
ML6000
PV124T

Backup and Recovery Software:
CommVault
Symantec Backup Exec including Backup Exec System Recovery
Vizioncore

Communications

Intel PRO/1000PT – Single Port Intel x1 PCIe, copper GbE NIC
Dual Port Broadcom 5709 PCIe copper, GbE NIC, TOE
Dual Port Broadcom 5709 PCIe copper, GbE NIC, TOE/Isoe
Intel PRO/1000VT Quad Port Intel x4 PCIe copper, GbE NIC
Intel Single Port 1GbE NIC
Intel Dual Port 1GbE NIC
Intel Quad Port 1GbE NIC
Broadcom Dual Port 1GbE NIC
Brocade CNA Dual-port adapter

Optional add in HBAs:
Brocade FC4 and 8 GB HBAs
