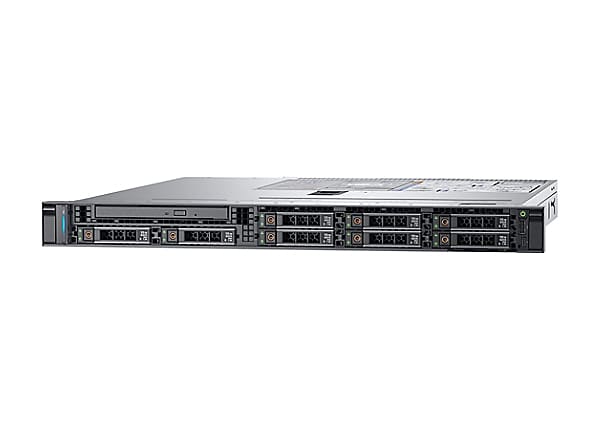

Dell EMC PowerEdge R340 – rack-mountable – Xeon E-2234 3.6 GHz – 8 GB – HDD

(6257252)

Categories: , , ,

The Dell EMC PowerEdge R340 is a single-socket 1U rack server designed for productivity and data intensive applications for remote office/branch offices.

Product Specifications

Chassis
Form Factor :Rack-mountable
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SAS
Hot-Swap Bays Qty :4

Processor
Type :Xeon
Number of Cores :Quad-Core
Processor Number :E-2234
Installed Qty :1
Max Supported Qty :1
Server Scalability :1-way
Manufacturer :Intel
Clock Speed :3.6 GHZ
Max Turbo Speed :4.8 GHZ
Processor Main Features :Intel Turbo Boost Technology 2

Cache Memory
Installed Size :8 megabyte

RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :8 GB
Max Supported Size :64 GB
Configuration Features :1 x 8 GB
Data Integrity Check :ECC
Slots Qty :4
Empty Slots :3
Memory Speed :2666 megahertz
Rated Memory Speed :2666 megahertz

Type :RAID
Storage Controller Name :Dell PERC H330
Installed Qty :1

Networking
Ethernet Controller(s) :Broadcom BCM5720
Remote Management Controller :Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9)
Interface (Bus) Type :LAN-on-motherboard (LOM)
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x Gigabit Ethernet

Expansion Bays
Bays :4 (total) / 3 (free) x hot-swap 3.5″

Expansion Slots
Slots :1 PCIe 3.0 x4 – low-profile, 1 PCIe 3.0 x8 – half-length, full-height

Interface Provided
Interfaces :1 x management – micro-USB (1 in front) (iDRAC Direct port), 1 x management (iDRAC dedicated port), 1 x serial, 1 x USB 2.0 – Type A (1 in front), 1 x VGA, 2 x LAN (Gigabit Ethernet) – RJ-45, 2 x USB 3.0 – Type A

Power Device
Type :Power supply – hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :1
Max Supported Qty :2
Power Provided :350 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz

Service & Support
Bundled Services :1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site
