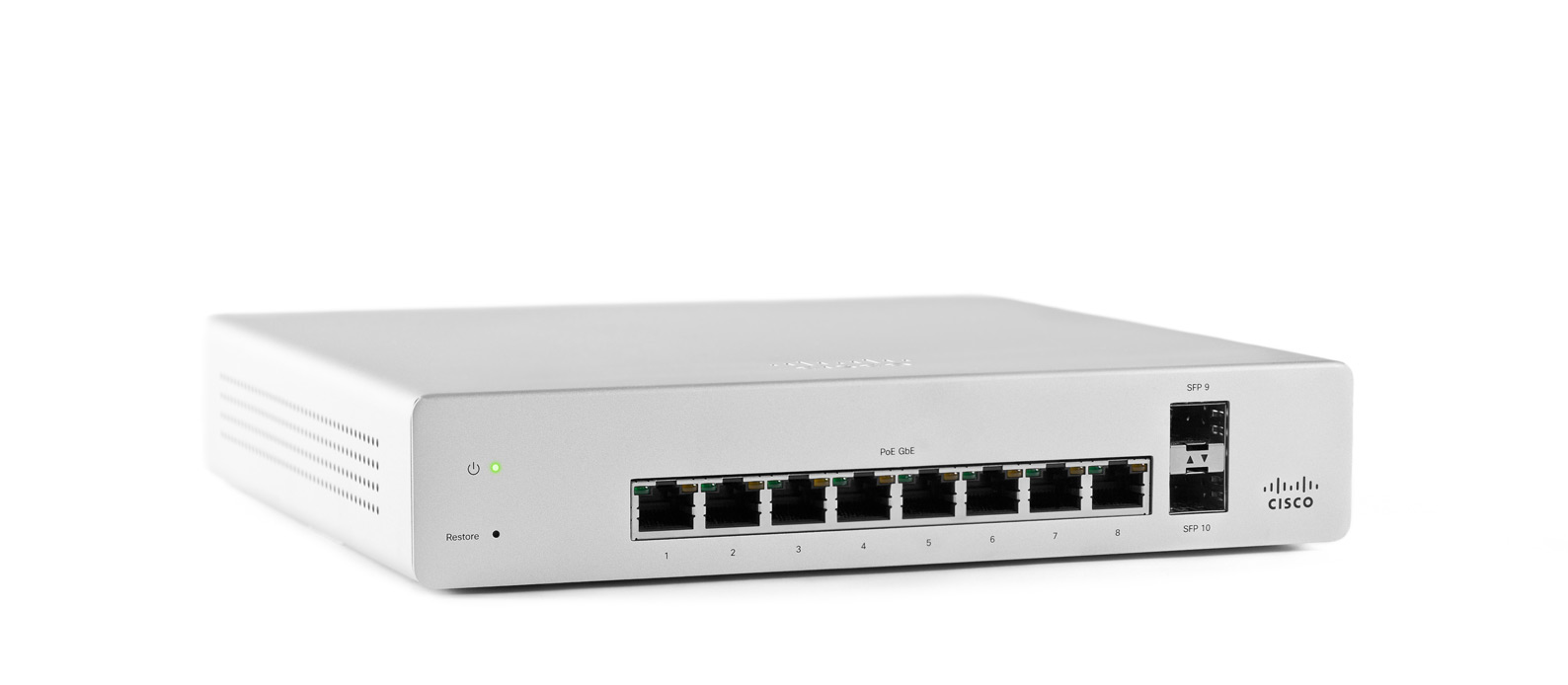

Cloud Managed Switching for the Small Branch

(MS220-8)

Categories: , , ,

Configurations
All models: 8 port gigabit Ethernet
All models: 2 × SFP for 1G uplink, non-shared
MS220-8P includes 124 W PoE / PoE+

Hardware platform
Voice and Video QoS
Low noise, fanless
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE model)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 25.5 W per port
MS220-8P maximum PoE output: 124 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Product Specifications

Interfaces
8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS220-8P model, available on all ports (maximum of 30W per port for PoE+)
2 × SFP Gigabit Ethernet interfaces for uplink
Auto negotiation and crossover detection

Ethernet switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging and Q-in-Q VLAN stacking with 4096 addressable tags
802.1D Spanning Tree Protocol (RSTP, STP)
802.1ab Link Layer Discovery Protocol (LLDP)
802.3ad link aggregation with up to 8 ports per aggregate
Broadcast storm control
IGMP snooping for multicast filtering
MAC forwarding table entries: 8,000

Security
Integrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE 802.1X port-based security

Performance
Non-blocking fabric
20 Gpbs non-blocking switching capacity
2.5 microsecond latency

Power over Ethernet (MS220-8P):
802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
Maximum PoE output: 124 W
PoE available on all ports simultaneously
Pre-standard PoE: supports pre-standard PoE devices

Management
Managed via the cloud using the Meraki dashboard
Integrated with Meraki wireless, routing, and firewall management
No-touch remote deployment (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP and hostname fingerprinting
SNMP v2c
Seamless over-the-web firmware upgrades

Remote diagnostics
Email and text alerts
Live remote packet capture
Aggregated event logs with instant search

Scalable stacking
Unified configuration and monitoring of all switches
Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Power
Power input: 100-240 VAC, 47-63 Hz
MS220-8 power consumption: 5-10 W max
MS220-8P power consumption: 13-159 W max

Environment
Operating temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 5 to 95% non-condensing
Silent operation for office environments
Surface (wall/desk) mountable with integrated brackets

Warranty
Lifetime hardware warranty with advanced replacement included

Physical dimensions MS220-8
Weight: 2.4 lbs (1.1 kg)
9.1”(w) x 8.7” (l) x 1.8” (h) (23.0 x 22.0 x 4.4 cm)

Physical dimensions MS220-8P
Weight: 3.0 lbs (1.3 kg)
9.1”(w) x 8.7” (l) x 1.8” (h) (23.0 x 22.0 x 4.4 cm)
