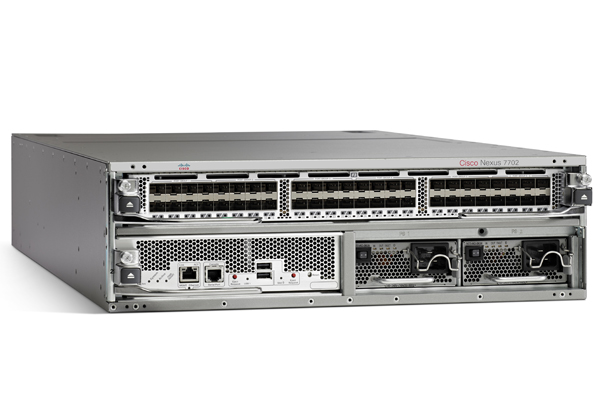

Cisco Nexus 7700 2-Slot Campus LAN Switches

Port count
48 x 10 Gbps, 24 x 40 Gbps, and 12 x 100 Gbps

Product compatibility
Supports all Cisco Nexus 7700 switch modules

Software compatibility
Cisco NX-OS Software Release 7.2 or later

Options
Door air filter
Lockable front module doors

System forwarding capacity
No fabrics; all line cards are line rate

Reliability and availability
Online insertion and removal (OIR) of redundant power supplies

MIBs
Supports Simple Network Management Protocol Version 3 (SNMPv3), v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)

Network management
Cisco Data Center Network Manager (DCNM) support

Programming interfaces
XML
Scriptable command-line interface (CLI)
Cisco DCNM web services
Python
Tool Command Language (TCL)
Cisco IOS ® Embedded Event Manager (EEM)
Cisco One Platform Kit (OnePK ™)
OpenFlow

Physical specifications
Physical (H x W x D)
Required rack space: 3RU
2-slot switch: 1 dedicated supervisor module and 1 I/O module
No fabric modules
2 power supply slots
Dimensions (H x W x D): 5.15 x 17.3 x 29.1 in. (13.08 x 43.9 x 73.9 cm)
Chassis depth, including cable management and chassis doors, is 35.1 in. (89.15 cm)
Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable
Weight
Chassis only: 37.5 lbs
Fully configured: 81.7 lbs
Power requirements: 110 to 240 VAC
Supports 3-kW AC and DC power supplies

Environmental specifications
Airflow direction: Front to back
Operating temperature: 32 to 104°F (0 to 40°C)
Operational relative humidity: 5 to 90%, noncondensing
Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
Seismic: Zone 4 per GR63
Floor loading: 24 lbs per sq.ft.
Operational vibration
GR63, Section 5.4.2
ETS 300 019-1-3, Class 3.1, Section 5.5
Storage altitude: -1000 to 30,000 ft.
Storage temperature: -40 to 158°F (-40 to 70°C)
Storage relative humidity: 5 to 95%, noncondensing
Heat dissipation: Maximum 6650 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)

Regulatory compliance
EMC compliance
FCC Part 15 (CFR 47) (USA) Class A
ICES-003 (Canada) Class A
EN55022 (Europe) Class A
CISPR22 (International) Class A
AS/NZS CISPR22 (Australia and New Zealand) Class A
VCCI (Japan) Class A
KN22 (Korea) Class A
CNS13438 (Taiwan) Class A
CISPR24
EN55024
EN50082-1
EN61000-3-2
EN61000-3-3
EN61000-6-1
EN300 386

Environmental standards
NEBS criteria levels *
SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
Verizon NEBS compliance *
Telecommunications Carrier Group (TCG) checklist
Century Link NEBS requirements *
Telecommunications Carrier Group (TCG) checklist
ATT NEBS requirements *
ATT TP76200 level 3
ETSI *
ETSI 300 019-2-1, Class 1.2 storage
ETSI 300 019-2-2, Class 2.3 transportation
ETSI 300 019-2-3, Class 3.2 stationary use
* Validation in progress

Safety
UL/CSA/IEC/EN 60950-1
AS/NZS 60950

Warranty
Cisco Nexus 7700 Switches come with the standard Cisco 1-year limited hardware warranty
